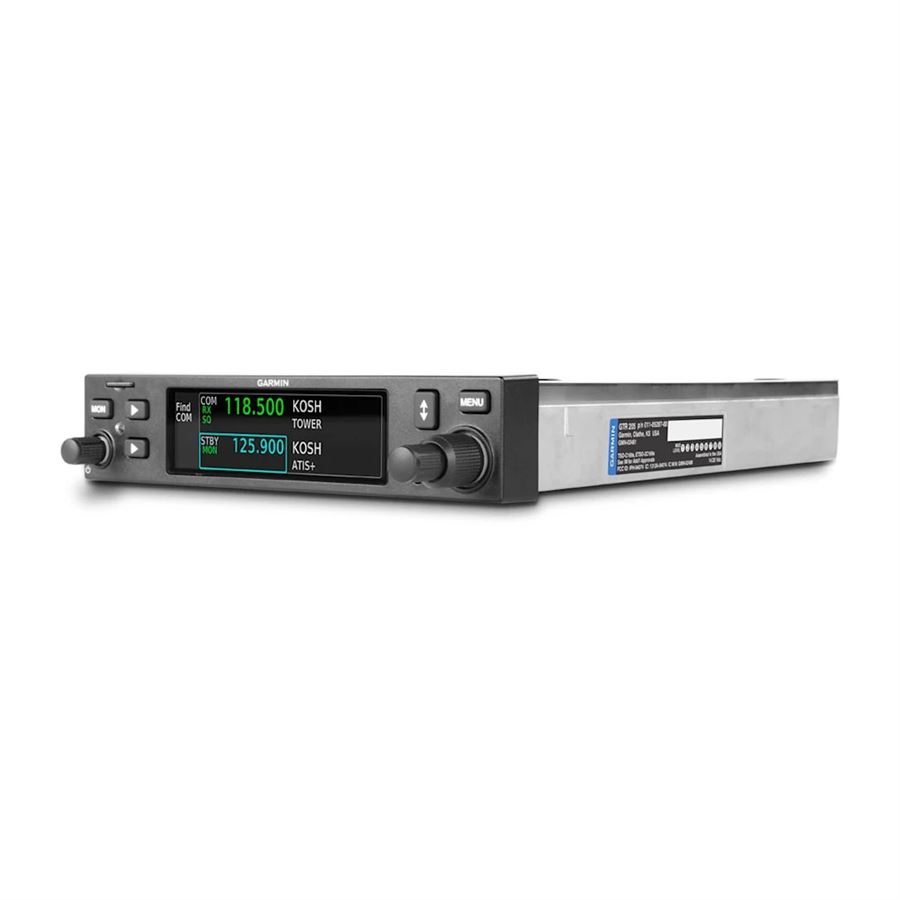

All-in-One COM Radio and Audio Solution for Modern Aircraft
Upgrade your panel with the slim, cost-effective GTR 205 COMM radio — combining powerful VHF communication, advanced audio processing and built-in intercom functionality in one compact unit. Ideal for experimental, light sport and general aviation aircraft.
Designed for Compact Panels
With a slim 1.35-inch height, the GTR 205 fits easily into smaller instrument panels without sacrificing capability.
A large, bright, full-color LCD display ensures excellent readability of frequencies and system information in all lighting conditions.
Powerful VHF COMM Performance
-
2,280-channel VHF COMM transceiver
-
Standard 10-watt transmit power (optional 16-watt enablement)
-
Pilot-selectable 25 kHz or 8.33 kHz channel spacing
-
Automatic or manual squelch control
-
One-touch active/standby frequency swap
-
Dedicated emergency frequency access (121.5 MHz)
Communicate clearly and confidently in any airspace.
Worldwide Frequency Database
Enter an airport identifier, and the GTR 205 automatically retrieves relevant frequencies — including tower, ground, ATIS, clearance delivery and more — from its worldwide database. Send the selected frequency directly to standby for quick access.
When paired with a compatible GPS source, Frequency ID displays the name and type of the tuned frequency, so you always know who you’re communicating with.
Standby Frequency Monitoring
Monitor a standby frequency (such as ATIS) while remaining on your active channel — improving situational awareness without interrupting communications.
Built-In Intercom
The integrated two-place intercom comes standard and delivers clear cockpit communication between pilot and co-pilot.
Optional enablement expands the system to a four-place intercom with:
Advanced Audio Capabilities
Auto Squelch Technology
Automatically adjusts mic sensitivity based on cockpit noise levels.
3D Audio Processing
When used with a stereo headset, audio sources are spatially separated for improved clarity and reduced workload.
COMM Playback
Record and replay up to 150 seconds of previous transmissions — ideal for reviewing clearances or missed calls.
EQ Settings
Selectable bass boost and equalizer profiles (rock, classical, pop) enhance music listening quality.
Bluetooth® Connectivity
Pair your smartphone or compatible device to:
-
Stream music directly to your headset
-
View song and artist information on the display
-
Control playback (play, pause, skip, repeat)
-
Receive and manage incoming calls
-
View signal strength and battery status
All directly from the radio interface.
Expandable Audio Panel Features
Dual-COMM Switching
Connect a second COMM radio via AUX input. Switch between radios or monitor both simultaneously. In the event of power loss, backup mode automatically connects the pilot’s headset to the second radio.
Auxiliary Inputs
Up to four mono AUX inputs are available for system alerts and additional audio sources. Two channels can be combined for stereo input.
Additional Features
-
Built-in timer (count up/down) for approaches and holds
-
Optional NVIS compatibility for night operations
-
Remote tuning capability when paired with Garmin G3X Touch flight display
The Smart Upgrade for Your Aircraft
The Garmin GTR 205 delivers professional-grade communication, premium audio performance and intercom functionality in a compact, installation-friendly design — making it an ideal solution for modern panel upgrades.
Performance:
Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)
Physical:
Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
In the box
- GTR 205
- Installation rack
- Backplate kit
- Configuration module
- One-time database coupon
